9-25mm PET strapping band making machine PET packing belt making machine pet tape making machine
Product Description of PET strap manufacturing machine:

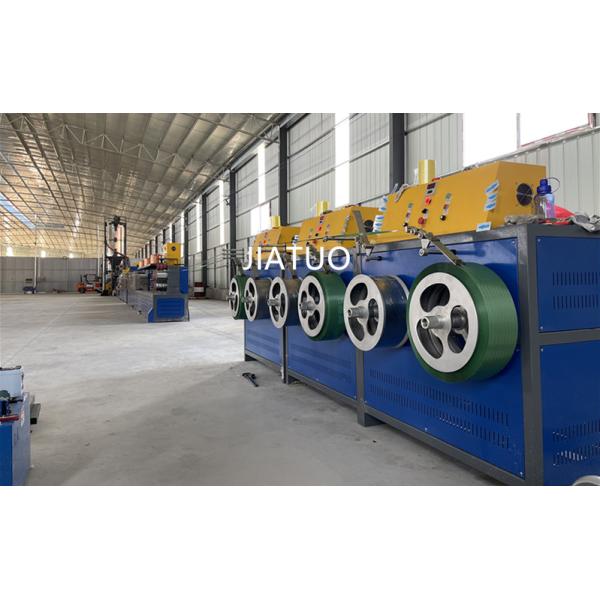

pet strapping band making machine
pet strapping band making machine is a high speed and environmentally friendly extruder, which can produce PET belts with width 9-32mm, with the following advantages:
1. Tensile strength ----pet strapping band making machine has the tensile strength of steel tape, good ductility and better impact resistance. It is not easy to break, which can ensure the safety of product transportation.
2. small elongation ----PET plastic steel belt is a kind of bundling products, its elongation change is very small, its elongation is only 1/6 of polypropylene, it can keep the tension, and make its elongation no longer change after packing.
3. Strong temperature resistance ----PET Plastic Steel Belt has the characteristics of high temperature resistance, cold resistance, etc. The melting point of PET strapping is about 260℃, which can be used for a long time without deformation under the environment of 120℃, and has good stability.
4.Environmental protection-----PET steel belt is beautiful and will not rust, but also can be recycled, energy saving and environmental protection, low manufacturing cost.
Raw Materials-------
High-end PET strapping can be produced using 100% PET bottle flakes or crushed material.
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials |
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 |
| Thickness (mm) | 0.4-1.2 |
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC |
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET thickening particles are divided into:
First-grade material-----average viscosity 0.70-0.74,
Second-grade material------average viscosity 0.68-0.70,
Third-grade material------average viscosity 0.70-0.75
Can be added according to different requirements.
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
Application areas
Packaging industry: used for packaging of various items, such as building materials, metals, paper products, etc.
Logistics industry: used for fixing and bundling during cargo transportation.
Other industries: such as home appliances, food, chemicals, etc.
FQA:
Q: What is the voltage of the pet strap manufacturing machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the pet strap manufacturing machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the pet strap manufacturing machine?
A: 9-32mm
Q: Can the pet strap manufacturing machine be customized?
A: Customization supported
Q: Where does the pet strap manufacturing machine come from?
A: China.
Q: What are the certifications for the pet strap manufacturing machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the pet strap manufacturing machine?
A: 1 set
Q: What is the weight of the pet strap manufacturing machine?
20T, 40GP container * 3PCS
